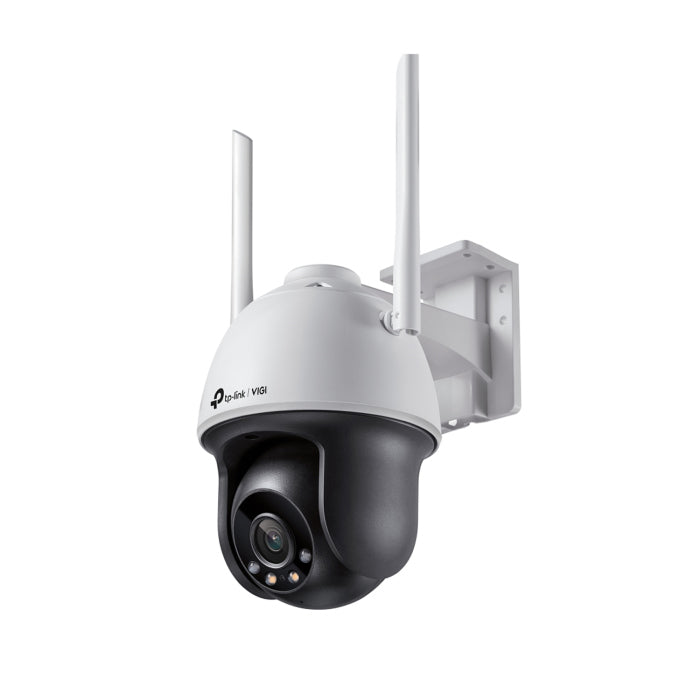

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera

39.000 KD - 39.000 KD
39.000 KD
39.000 KD - 39.000 KD
39.000 KD
Model No TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera
Part No VIGI C540-W
Camera Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed focal lens (4 mm)
Aperture 4 mm: F1.6
Lens Mount M12
Viewing Angle (4mm) Horizontal FOV: 79°Vertical FOV: 43°Diagonal FOV: 93°
Digital Zoom Yes
Day/Night Mechanism IR Cut Filter
IR Working Distance 30m
Illumination Distance 30 m
Minimum Illumination 0 lux with IR/white Light
Pan/Tilt Range Pan: 0° to 350°, Tilt: 0° to 120°
Weatherproof Rating IP66
Digital Noise Reduction 3D DNR
WDR DWDR
Network Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
Frequency 2.4 GHz
Wireless Security WPA/WPA2-PSK
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Consumption 12V DC: Max 15.5W
Video/Image Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Video Streaming Main Stream
Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Interface Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input Built-in Microphone
Audio Output Built-in Speaker
Button Reset Button
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Special Features 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.

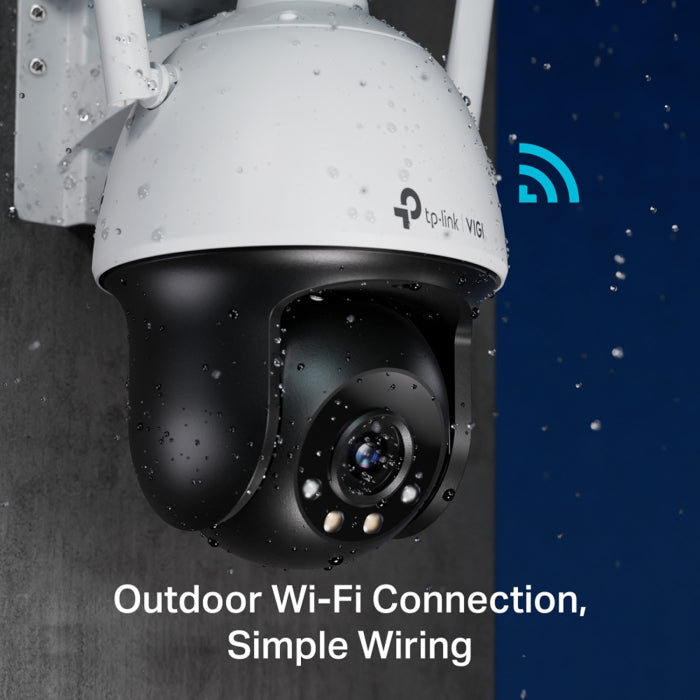

Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
VIGI App: Manage your security from the palm of your hand with the VIGI app.
Dimensions  120 × 172 × 198 mm
Weight 195g

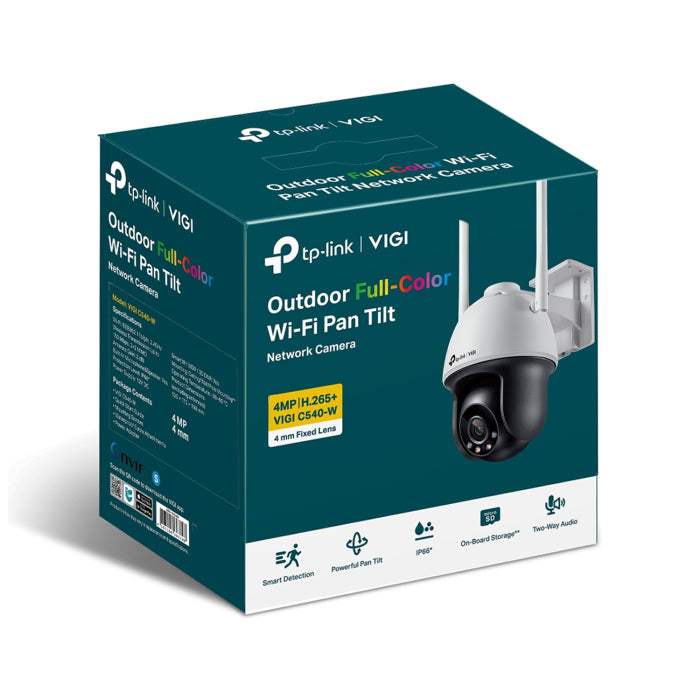

Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories
Warranty 1 Year ( As per Manufacturer Policy )

Key Features

  • Item ID : NS009523

  • Brand : TP-Link

  • Outdoor Use : Yes

  • Mega Pixels : 4MP

  • Color : White/Black
