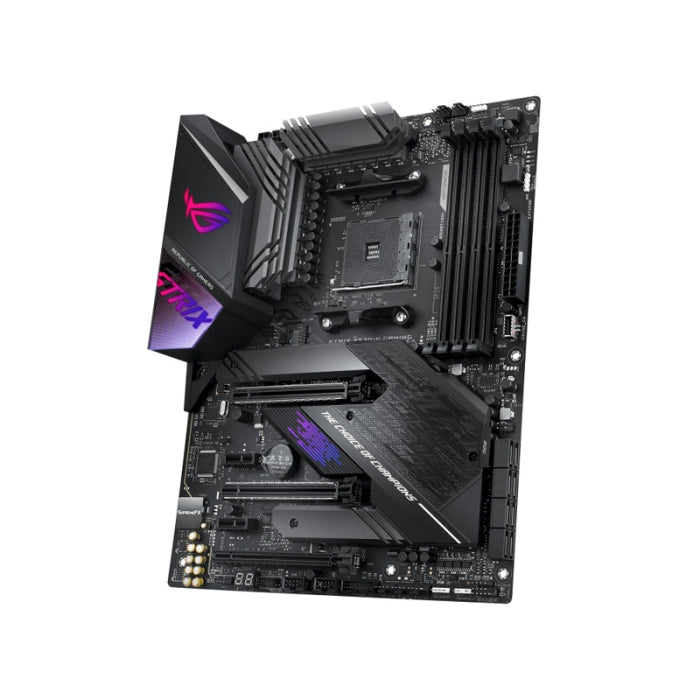

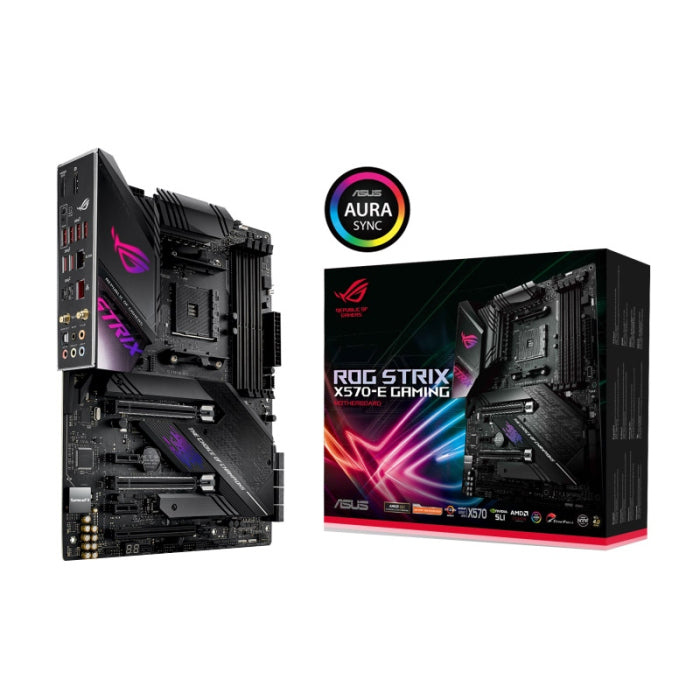

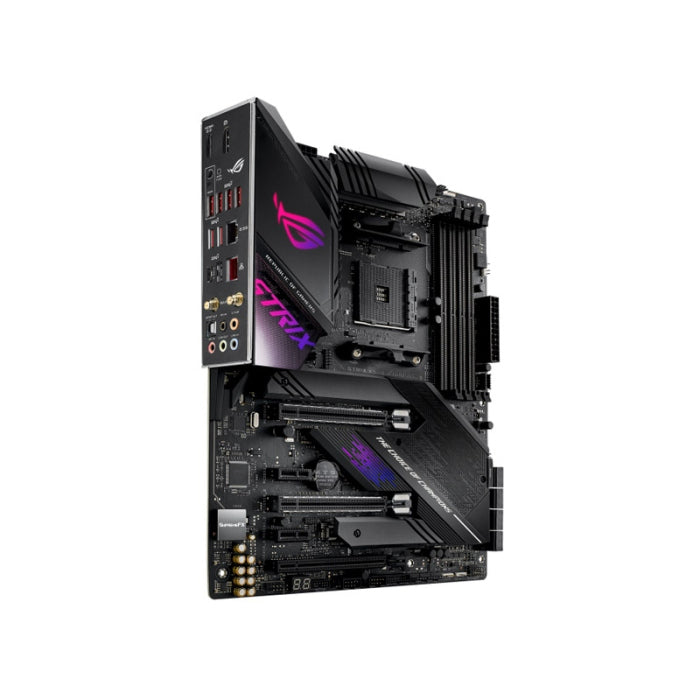

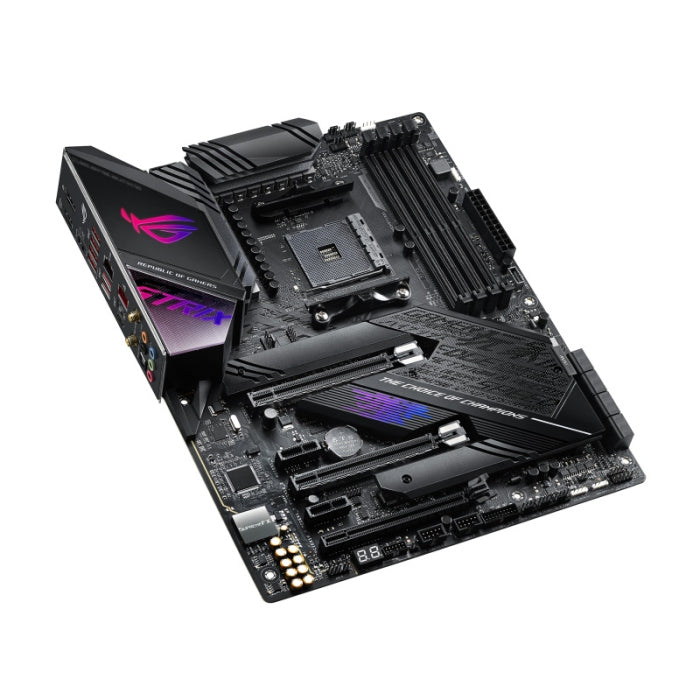

Asus AMD ROG Strix X570-E Gaming MotherBoard
The ROG Strix X570-E Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Next-generation wireless networking delivers the smoothest online gameplay and a comprehensive cooling options ensure stable performance. Topped off with futuristic styling with onboard illumination, ROG Strix X570-E Gaming equips you with all you need to build a formidable weapon to rise above the rest.
Solid Hardware Specs
With comprehensive cooling options and upgraded power delivery to fuel Ryzen CPUs with more cores, plus faster storage and networking, ROG Strix X570-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
Design & Customization
The arrival of ROG Strix X570-E Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry, ROG Strix X570-E Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.
Tune Your Rig You Want
The ROG Strix X570-E Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
Amd X570 Chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
Amd Am4 Socket For 3rd And 2nd Gen Amd Ryzen™ / 2nd And 1st Gen Amd Ryzen™ With Radeon™ Vega Graphics Processors.
The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
| Model No | ROG Strix X570-E Gaming |
| Part No | 90MB1150-M0EAY0 |
| CPU | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
| Chipset | AMD X570 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory |
| 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * | |
| AMD RyzenTM 4000 G-Series Processor | |
| AMD RyzenTM 2000 Series Processors | |
| 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * | |
| 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory | |
| Dual Channel Memory Architecture | |
| Graphic | Integrated Graphics in AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors |
| Multi-VGA output support : HDMI/DisplayPort ports | |
| - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz | |
| - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz | |
| Multi-GPU Support | AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors> |
| AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors | |
| Supports NVIDIA 2-Way SLI® Technology | |
| Supports AMD 3-Way CrossFireX™ Technology | |
| Supports AMD 2-Way CrossFireX™ Technology | |
| Expansion Slots | AMD RyzenTM 4000 G-Series / 2000 Series Processors |
| AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors | |
| AMD RyzenTM 3000 G-Series / 2000 G-Series Processors | |
| 2 x PCIe 4.0 x16 (x16 or dual x8) | |
| 2 x PCIe 3.0 x16 (x16 or dual x8) | |
| 1 x PCIe 3.0 x16 (x8 mode) | |
| AMD X570 chipset | |
| 1 x PCIe 4.0 x16 (max at x4 mode) *1 | |
| 2 x PCIe 4.0 x1 | |
| Storage | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : |
| AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : | |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support | |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support | |
| AMD X570 chipset : | |
| 8 x SATA 6Gb/s port(s), | |
| Support Raid 0, 1, 10 | |
| 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support | |
| LAN | Intel® I211-AT, 1 x Gigabit LAN Controller(s) |
| Realtek® RTL8125-CG 2.5G LAN | |
| Anti-surge LANGuard | |
| ROG GameFirst Technology | |
| Wireless Data Network | Supports channel bandwidth: HT20/HT40/HT80/HT160 |
| Intel® Wi-Fi 6 AX200 | |
| 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz | |
| Up to 2.4Gbps transfer speed | |
| Bluetooth | Bluetooth® 5.0 |
| Audio | SupremeFX8-Channel High Definition Audio CODEC S1220A |
| - Dual OP Amplifiers | |
| - Impedance sense for front and rear headphone outputs | |
| - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality120dBSNR stereo playback outputand113dBSNR recording input | |
| - SupremeFX Shielding Technology | |
| - Supports up to 32-Bit/192kHz playback *2 | |
| Audio Feature : | |
| - Optical S/PDIF out port(s) at back panel | |
| - Sonic Radar III | |
| - Sonic Studio III + Sonic Studio Link | |
| USB Ports | AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors : |
| AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors : | |
| 4 x USB 3.2 Gen 2 port(s) (4 at back panel, ) | |
| 4 x USB 3.2 Gen 1 port(s) | |
| 1 x USB 3.2 Gen 2 front panel connector port(s) | |
| 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) | |
| 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) | |
| AMD X570 chipset : | |
| 4 x USB 2.0 port(s) (4 at mid-board) | |
| ROG Exclusive Features | ROG Exclusive Software |
| - RAMCache III | |
| - CPU-Z | |
| - GameFirst V | |
| - Overwolf | |
| Special Features | - USB BIOS FlashBack™ |
| - BIOS FlashBack™ Button | |
| 5-Way Optimization by Dual Intelligent Processors 5 | |
| - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. | |
| TPU | |
| - Auto Tuning, TurboV, GPU Boost | |
| Gamer´s Guardian: | |
| - DRAM Overcurrent Protection | |
| - Stainless Steel Back I/O | |
| - Highly Durable components | |
| - Digi+ VRM | |
| - SafeSlot | |
| - ESD Guards on LAN, Audio,and USB ports | |
| ASUS EPU : | |
| - EPU | |
| AURA : | |
| - Aura Lighting Control | |
| - Addressable Gen 2 Header | |
| ASUS Exclusive Features : | |
| - AI Suite 3 | |
| - Ai Charger | |
| - ASUS NODE : hardware control interface | |
| ASUS EZ DIY : | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| ASUS Q-Design : | |
| - ASUS Q-Code | |
| - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| - ASUS Q-Slot | |
| - ASUS Q-DIMM | |
| Gaming Aesthetics : | |
| - AURA-RGB Lighting | |

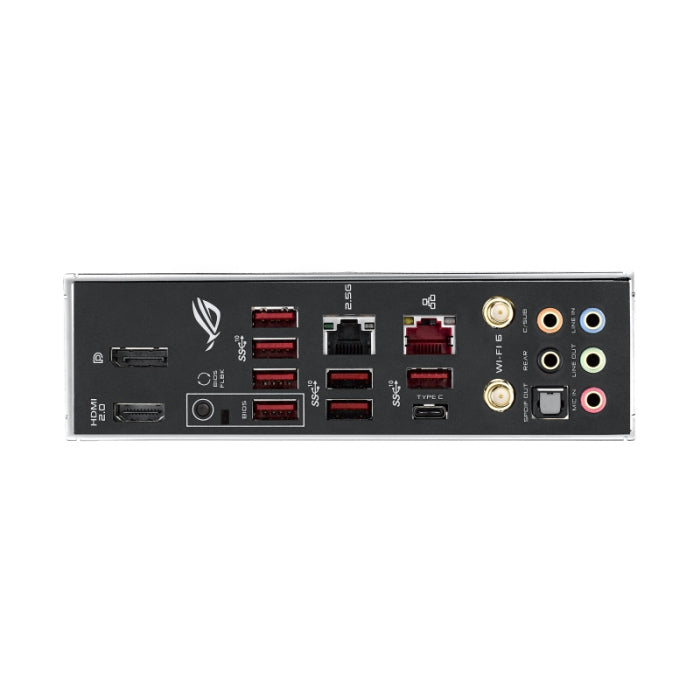

| Back I/O Ports | 1 x USB BIOS FlashBack™ Button(s) |
| 1 x DisplayPort | |
| 1 x HDMI | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jack(s) | |
| 1 x Anti-surge 2.5G LAN (RJ45) port | |
| 1 x ASUS Wi-Fi Module | |
| 7 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) | |
| 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) | |
| Anti-surge LAN (RJ45) port | |
| Internal I/O Ports | 1 x PCH_FAN |
| 1 x AAFP connector | |
| 2 x Aura RGB Strip Header(s) | |
| 2 x Addressable Gen 2 header(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support | |
| 1 x SPI TPM header | |
| 8 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) | |
| 1 x CPU OPT Fan connector(s) | |
| 2 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 1 x W_PUMP+ connector | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x 4-pin ATX 12V Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x Thermal sensor connector(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x Node Connector(s) | |
| 1 x System panel connector | |
| 1 x T_Sensor Connector | |
| 1 x M.2 Fan Header | |
| 1 x USB 3.2 Gen 2 (up to 10Gbps) connector | |
| 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports | |
| Accessories | User´s manual |
| 4 x SATA 6Gb/s cable(s) | |
| 1 x M.2 Screw Package | |
| 1 x Supporting DVD | |
| 1 x Strix door hanger | |
| 1 x ROG Strix stickers | |
| 1 x Cable ties pack(s) | |
| 1 x Wi-Fi Antenna(s) | |
| 1 x Extension Cable for RGB strips (80 cm) | |
| 1 x Extension cable for Addressable LED | |
| 1 x Thermistor cable(s) | |
| 1 x ROG Thank you card | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
| Manageability | WOL, PXE |
| Support Disc | Overwolf |
| Anti-virus software (OEM version) | |
| WinRAR | |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Key Features
-
Item ID : NS000179
-
Brand : Asus
-
Socket Type : AMD AM4
-
Form Factor : ATX
-
Memory Type : DDR 4
-
Wi-Fi : Yes
