ASRock Intel H560M-HDV/M.2 MotherBoard
Original price
37.500 KD
-
Original price
37.500 KD
Original price
37.500 KD
37.500 KD
-
37.500 KD
Current price
37.500 KD
| Model No | ASRock Intel H560M-HDV/M.2 MotherBoard |
| Part No | 90-MXBLE0-A0UAYZ |
| Chipset | Intel® B560 |
| Form Factor | Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm - Solid Capacitor design |
| Socket Compatibility | Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) - 5 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology |
| LAN | Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment |
| Graphics | 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ Processors - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ Processors - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports - Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors) *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.* Graphics specifications may vary between CPU types. **Supports up to 2 displays simultaneously |
| Memroy | Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4000+(OC)* - 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 3600+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively. 10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively. |
| Storage Compatibility | 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. **Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |

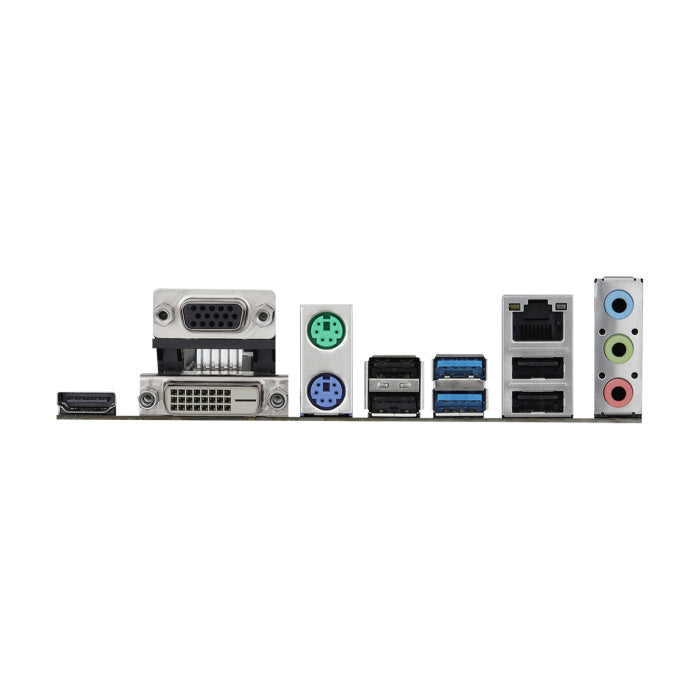

| Back Panel I/O Ports | 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Slots | 11th Gen Intel® Core™ Processors - 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® Core™ Processors - 1 x PCI Express 3.0 x16 Slot* - 1 x PCI Express 3.0 x1 Slot *Supports NVMe SSD as boot disks |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection |
| Connectors | 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis Fan Connector (4-pin)** - 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Special Features | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Auto Driver Installer ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version) |
| Hardware Monitor | Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V |
| Package Content | 1 x User Manual - 1 x Support CD - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
Key Features
-
Item ID : NS011491
-
Brand : Asrock
-
Socket Type : LGA 1200
-
Form Factor : Micro ATX
-
Memory Type : DDR 4
-
Wi-Fi : No
