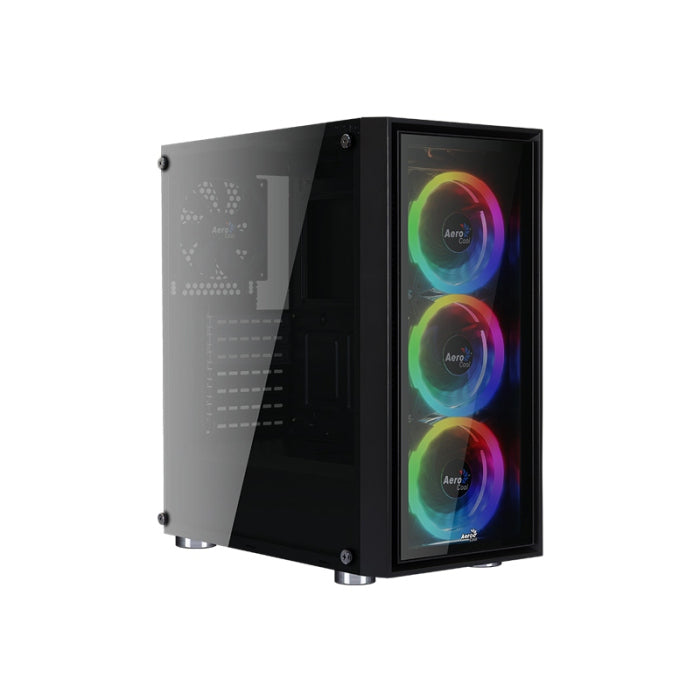

AeroCool Quartz REVO ARGB Mid-Tower Full Tempered Glass Front Panel & Side Panel Case with 3 RGB Fan + 1 Rear Fan
Beautifully Crafted
Showcase your rig as this mid tower comes with tempered glass in the front and side panels.
The Quartz supports ATX motherboards and includes three LED Fans.
RGB Lighting
Access 16.8 million colors and three LED modes with P7-S1 (Project 7-Software 1) available with our P7-Hub (P7-H1).
Liquid Cooling Support
Front: Supports 240mm or 360mm radiator x 1 (Optional)
Top: Supports 240mm radiator x 1 (Optional)
Air Cooling
Front: Supports 120mm LED Blue fan x 3 (Included)
Top: Supports 120mm fan x 2 (Optional)
Rear: Supports 120mm fan x 1 (120mm Black Fan included)
I/O Panel
The I/O panel also includes 1 x USB 3.0 and 2 X USB 2.0, mic / headphone jack, power & reset buttons.
Easy Maintenance
Removable dust filters for easy cleaning. Dust filters are located below the PSU chamber, and at the top.
| Model | Quartz RGB |
| Part No | Quartz REVO |
| Case Type | Mini Tower |
| Color | Black |
| Steel Thickness | 0.5mm |
| Motherboards | ATX/micro ATX/mini-ITX |
| Case Dimensions (Overall) | 206.1 x 455 x 408mm (W x H x D) |
| 3.5” Drive Bay | 2 |
| 2.5” Drive Bays | 4 |
| Expansion Slots | 7 |
| GPU Clearance | Supports GPU up to 341mm/366mm(without front fan) |
| CPU Clearance | Supports CPU up to 152mm |
| I/O Ports | USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic. |
| Air Cooling | Front : 120mm RGB Fan x 3 |
| Top: 120mm x 2 (Optional) | |
| Rear: 120mm x 1 (Includes 120mm Fan) | |
| Liquid Cooling | Front: 240/360mm Radiator (Optional) |
| Top : 240mm Radiator (Optional) | |
| Net Weight/Gross Weight | 5.9kg (13 lbs.)/6.6kg (14.55 lbs.) |
| Power Supply | ATX PSU (Up to 180mm, Optional) |
Key Features
-
Item ID : NS000736
-
Brand : Aero Cool
-
Case Type : ATX MID Tower
-
Sidepannel : 2 Sides Tempered Glass
-
Pre-Installed Fans : 4
-
Radiator Support : Up to 360mm
-
Color : Black
